Windows 10
To create a VPN client on an RPS workstation running Windows 10, work through the sections below in order. Follow the steps in each section.
Start with Settings
- Click the Windows Start button, then click the Settings icon.

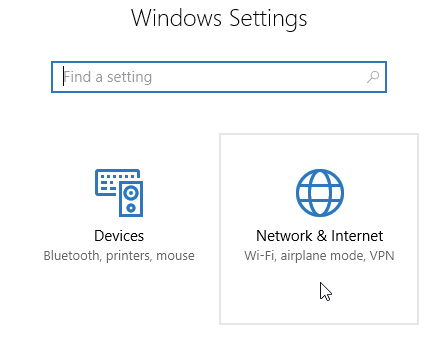

- Click Network & Internet.
- In the Network & Internet list, click VPN

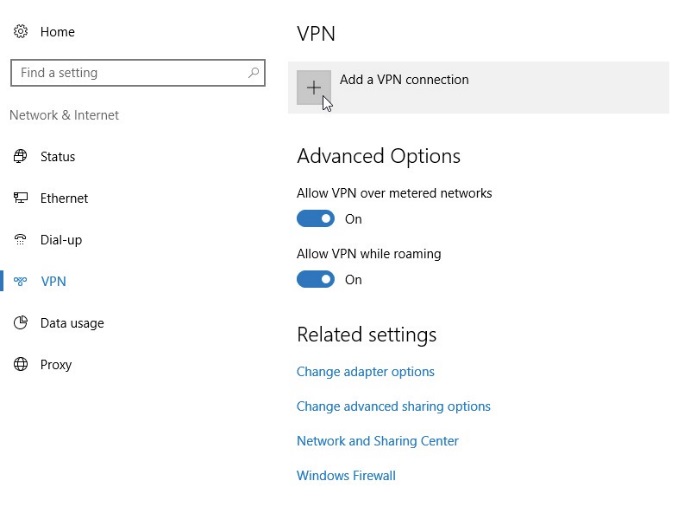

- Click Add a VPN connection.
Add a VPN
Follow the steps below to create a Windows VPN for Bosch Cellular.

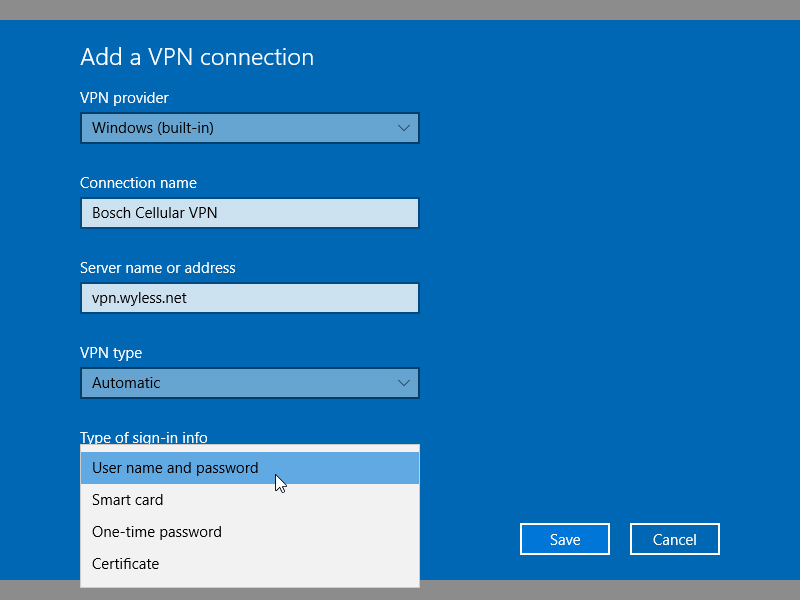

- Click VPN provider, then select Windows (built-in).
- Click Connection name and enter "Bosch Cellular VPN" for the connection name.
- Click Server name or address, then enter "vpn.wyless.net" for the server name.
- Click VPN type and select Automatic.
- Click Type of sign in info, then select User name and password.
- Click Save.
Change the adapter options
Follow the steps below to change the adapter options for the Bosch Cellular VPN.

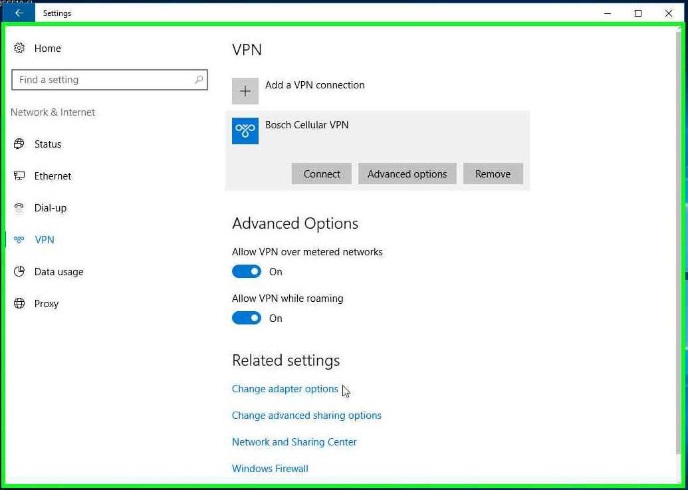

- In the settings window, click VPN, then Under Related settings, click Change adapter options.

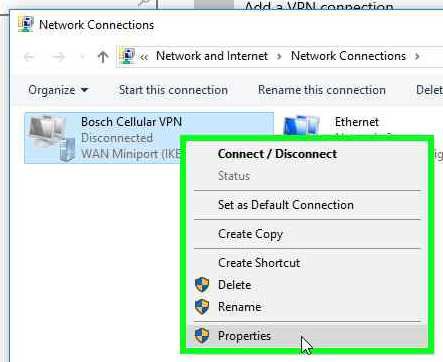

- Right-click Bosch Cellular VPN, then click Properties.
- Click the Security tab, then select Allow these protocols.
- Select (checkmark in the checkbox) Challenge Handshake Authentication Protocol (CHAP) and Microsoft CHAP Version 2 (MSCHAP v2), then click the Networking tab.

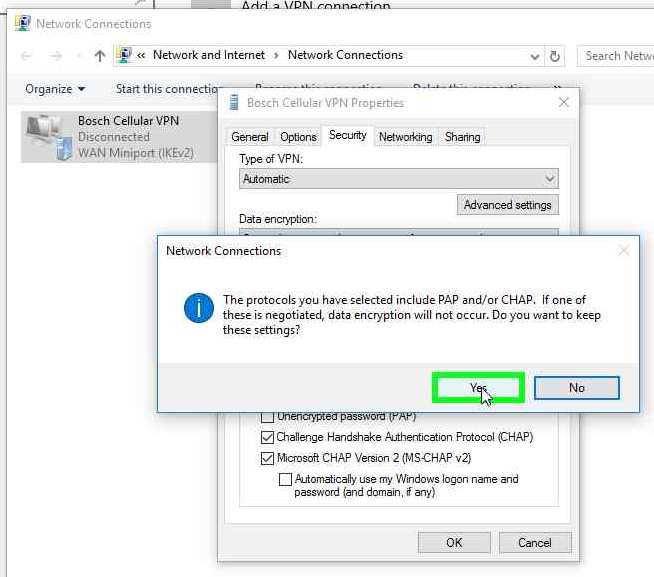

- Click Yes in the Network Connection pop-up window.
Configure the adaptor for Internet Protocol Version 4

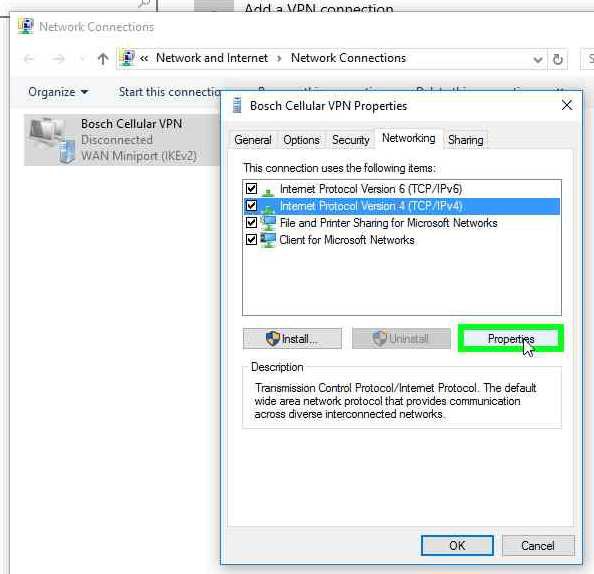

- Click Internet Protocol Version 4, then click Properties.

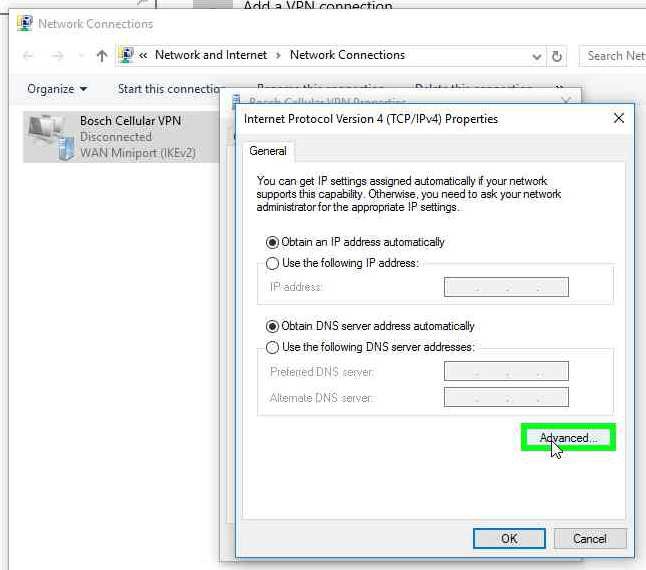

- Click Advanced.

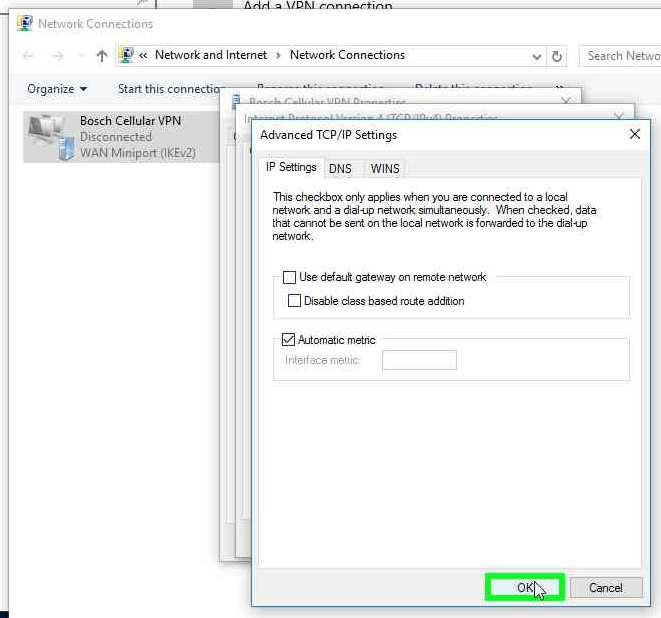

- Click the Use default gateway on remote network checkbox to deselect (no checkmark inbox), then click OK.

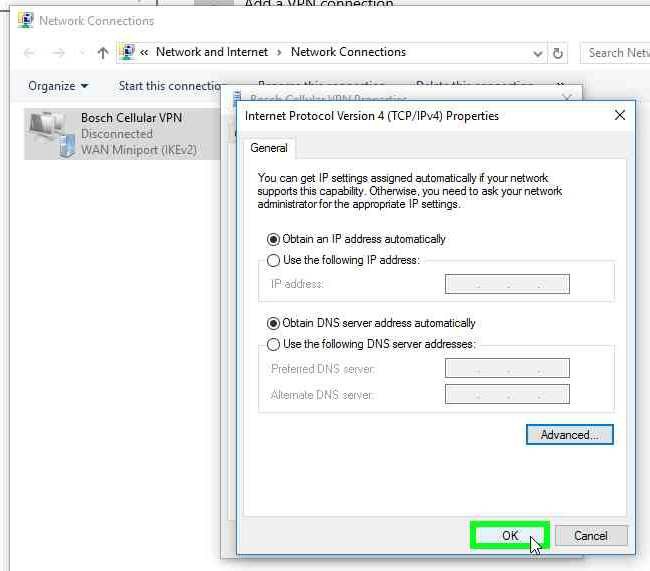

- Click OK.
Configure the adaptor for Internet Protocol Version 6

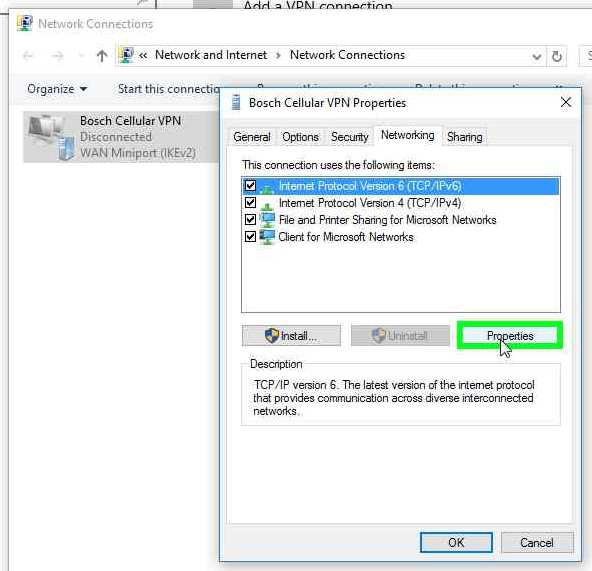

- Click Internet Protocol Version 6, then click Properties.
- Click Advanced.

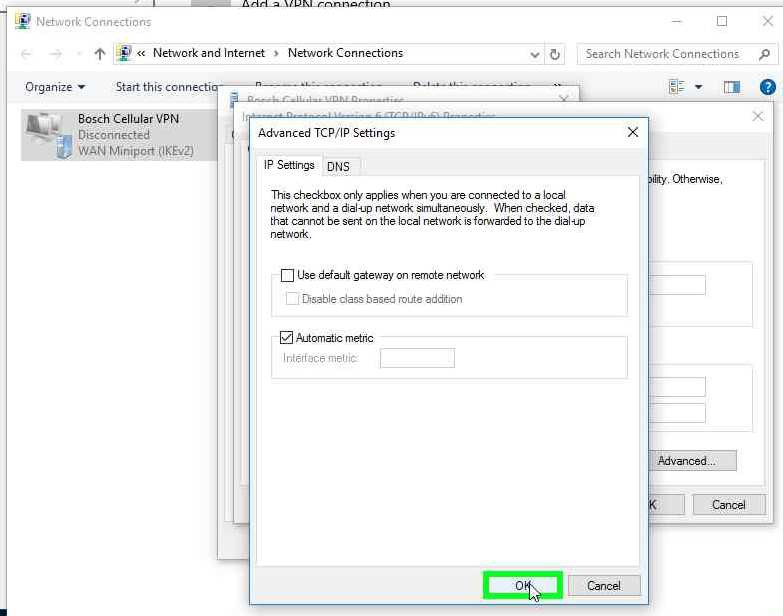

- Click the Use default gateway on remote network checkbox to deselect (no checkmark inbox), then click OK.

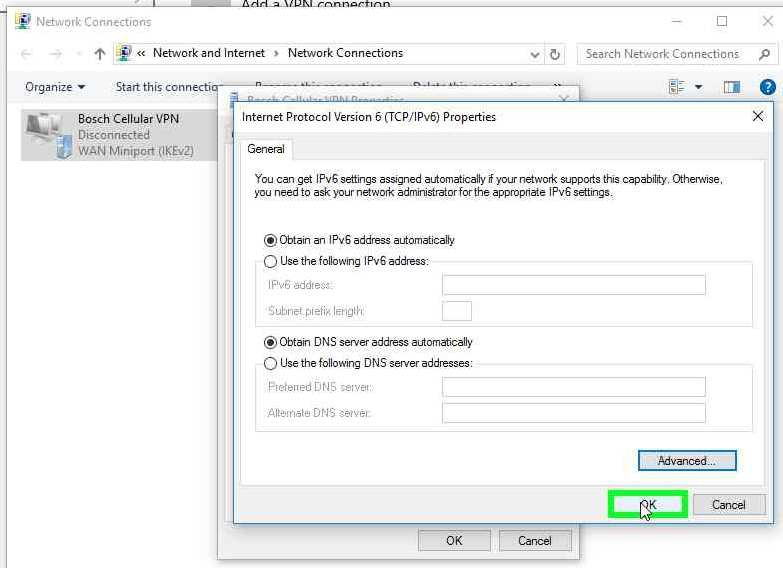

- Click OK.

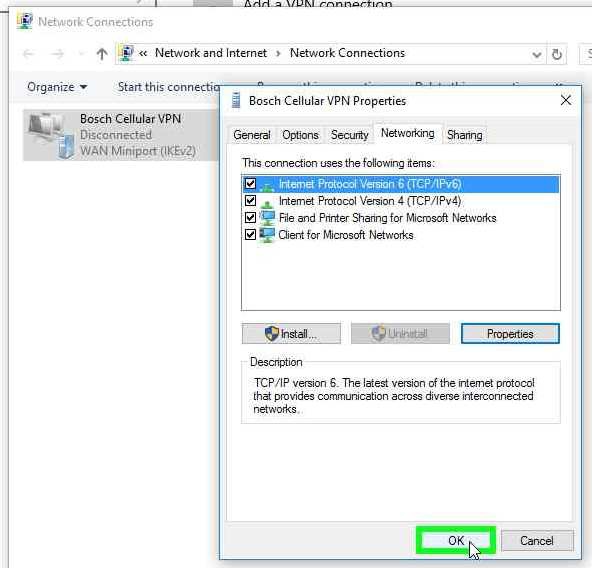

- Click OK.

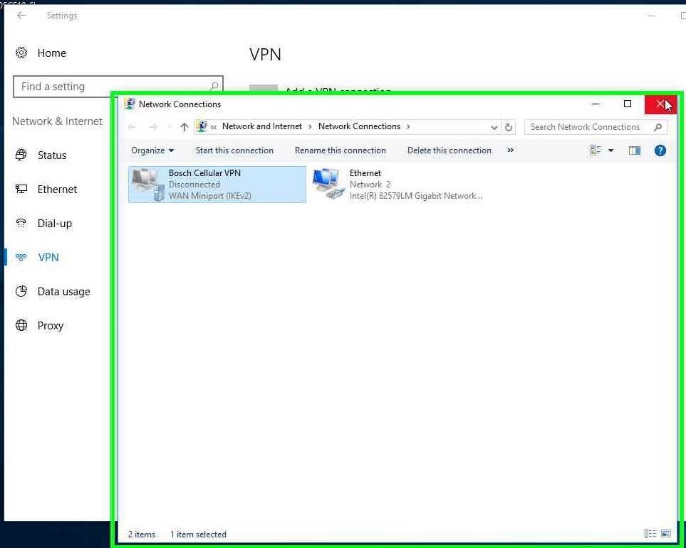

- Close the Network Connections window.

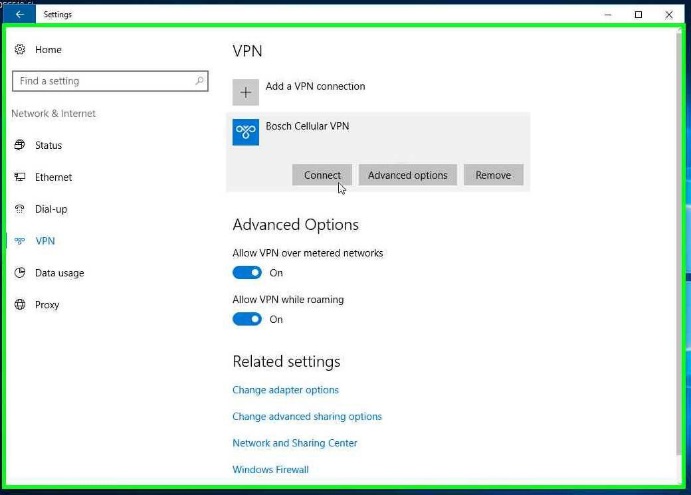

- Click Connect.
- The VPN window shows the Bosch Cellular VPN is connected. To disconnect from the
VPN, click Disconnect.
Connect to the VPN
RPS automatically connects and disconnects from the VPN for B9512G, B8512G, B6512, B5512, B4512, D9412GV4 (v2.xx), and D7412GV4 (v2.xx) control panels. For D9412GV4 (v1.xx), D7412GV4 (v1.xx), D7212GV4 (v1.xx), D9412GV3, D7412GV3, D7212GV3, D9412GV2 (v7.06), D7412GV2 (v7.06), D7212GV2 (v7.06), and FPD-7024 control panels you must manually connect and disconnect from the VPN.
